Collaboration diagram for State Utilities:

Files
file	state_utils.c
file	state_utils.h
Functions

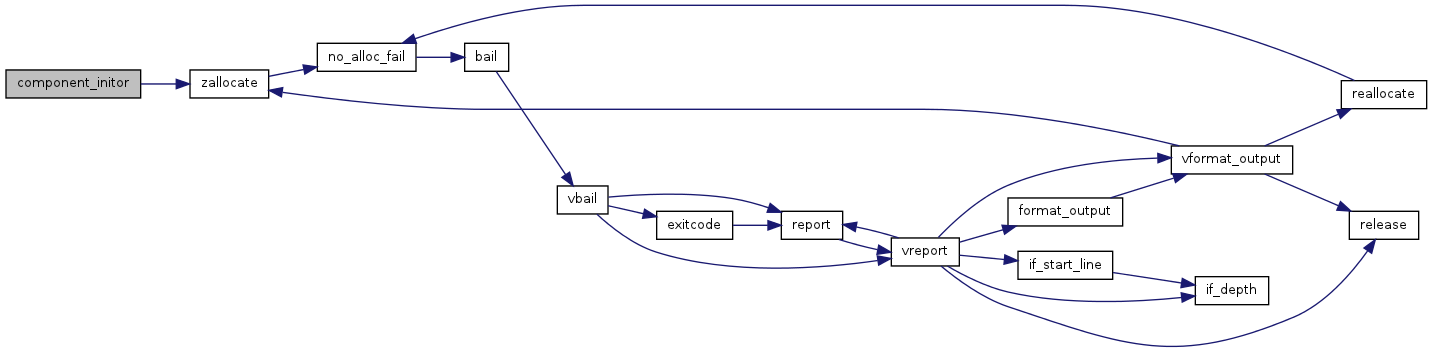

void	component_initor (bool is_static, bool is_zero_initable, void state, void public_state, void const initialiser, size_t size, void(user_init)())
void	component_finitor (bool is_static, void state, void public_state, void(*user_finis)())
#define	STATE_ALLOCATOR (malloc)
#define	STATE(component) component##_state
#define	PUBLIC_STATE(component) component##_public_state
#define	HANDLE(component) component##_h
#define	PUBLIC_HANDLE(component) component##_public_h
#define	USER_INIT(component) component##_init
#define	USER_FINIS(component) component##_finis
#define	USER_INIT_HANDLE(component) component##_init_h
#define	USER_FINIS_HANDLE(component) component##_finis_h
#define	INITOR(component) component##_initor
#define	FINITOR(component) component##_finitor
#define	STATIC_INITIALISER(component) component##_static_initialiser
#define	STATIC_INITIALISER_HANDLE(component) component##_static_initialiser_h
#define	STORAGE_TYPE_TAG(component) component##_storage_type
#define	INITIALISATION_TYPE_TAG(component) component##_initialisation_type
#define	DECL_USER_INIT(component) void USER_INIT(component)(STATE_T(component) *)
#define	DECL_USER_FINIS(component) void USER_FINIS(component)(STATE_T(component) *)
#define	DECL_USER_INIT_HANDLE(component) void (USER_INIT_HANDLE(component))(STATE_T(component) )
#define	DECL_USER_FINIS_HANDLE(component) void (USER_FINIS_HANDLE(component))(STATE_T(component) )
#define	DECL_INITOR(component) void INITOR(component)(void)
#define	DECL_FINITOR(component) void FINITOR(component)(void)
#define	DECL_STATIC_INITIALISER(component) static const STATE_T(component) STATIC_INITIALISER(component)
#define	DECL_STATIC_INITIALISER_HANDLE(component) static const STATE_T(component) * const STATIC_INITIALISER_HANDLE(component)
#define	SELECT_STATIC(component) enum component##_storage_type { STORAGE_TYPE_TAG(component) = STATE_STATIC }
#define	SELECT_DYNAMIC(component) enum component##_storage_type { STORAGE_TYPE_TAG(component) = STATE_DYNAMIC }
#define	SELECT_INITIALISATION_TYPE(component, init_type) enum component##_init_type { INITIALISATION_TYPE_TAG(component) = init_type }
#define	SELECT_ZERO_INITABLE(component) SELECT_INITIALISATION_TYPE(component,ZERO_INITABLE)
#define	SELECT_STATIC_INITABLE(component) SELECT_INITIALISATION_TYPE(component,STATIC_INITABLE)
#define	SELECT_USER_INITABLE(component) SELECT_INITIALISATION_TYPE(component,USER_INITABLE)
#define	IS_STATIC(component) (STORAGE_TYPE_TAG(component) == (int)STATE_STATIC)
#define	IS_ZERO_INITABLE(component) (INITIALISATION_TYPE_TAG(component) == (int)ZERO_INITABLE)
#define	HAS_STATIC_INITIALISER(component) (INITIALISATION_TYPE_TAG(component) == STATIC_INITABLE)
#define	HAS_USER_INIT(component) (INITIALISATION_TYPE_TAG(component) == (int)USER_INITABLE)
#define	DECL_DYNAMIC_STATE(component)
#define	DECL_STATIC_STATE(component)
#define	IMPORT_INITOR(component) extern DECL_INITOR(component)
#define	IMPORT_FINITOR(component) extern DECL_FINITOR(component)
#define	IMPORT_STATE(component) extern PUBLIC_STATE_T(component) * PUBLIC_HANDLE(component)
#define	GET_STATE_BY_HANDLE(component, field) (assert(true),HANDLE(component)->field)
#define	SET_STATE_BY_HANDLE(component, field) (HANDLE(component)->field)
#define	GET_STATIC_STATE(component, field) (assert(true),STATE(component).field)
#define	SET_STATIC_STATE(component, field) (STATE(component).field)
#define	DEFINE_INITOR(component)
#define	DEFINE_FINITOR(component)

Detailed Description

infrastructure.

Define Documentation

#define DECL_DYNAMIC_STATE ( component )

Value:

STATE_T(component) * HANDLE(component) = NULL;\
         PUBLIC_STATE_T(component) * PUBLIC_HANDLE(component) = NULL

Declare handles to component's global and public state when state is in dynamic storage

Definition at line 143 of file state_utils.h.

#define DECL_FINITOR ( component ) void FINITOR(component)(void)

Declare generated component finalising function

Definition at line 105 of file state_utils.h.

#define DECL_INITOR ( component ) void INITOR(component)(void)

Declare generated component initialising function

Definition at line 103 of file state_utils.h.

#define DECL_STATIC_INITIALISER ( component ) static const STATE_T(component) STATIC_INITIALISER(component)

Declare a static initialiser for the component

Definition at line 107 of file state_utils.h.

#define DECL_STATIC_INITIALISER_HANDLE ( component ) static const STATE_T(component) * const STATIC_INITIALISER_HANDLE(component)

Declare pointer to component const initialiser. Can be null if none

Definition at line 110 of file state_utils.h.

#define DECL_STATIC_STATE ( component )

Value:

static STATE_T(component) STATE(component);\
        STATE_T(component) * HANDLE(component) = &STATE(component);\
        PUBLIC_STATE_T(component) * PUBLIC_HANDLE(component) =\
         (PUBLIC_STATE_T(component) *)&STATE(component)

Declare component's state in static storage, with handles to global and public state.

Definition at line 150 of file state_utils.h.

#define DECL_USER_FINIS ( component ) void USER_FINIS(component)(STATE_T(component) *)

Declare user-defined component finalising function

Definition at line 94 of file state_utils.h.

#define DECL_USER_FINIS_HANDLE ( component ) void (*USER_FINIS_HANDLE(component))(STATE_T(component) *)

Declare pointer to user-defined finalising function

Definition at line 100 of file state_utils.h.

#define DECL_USER_INIT ( component ) void USER_INIT(component)(STATE_T(component) *)

Declare user-defined component initialising function

Definition at line 91 of file state_utils.h.

#define DECL_USER_INIT_HANDLE ( component ) void (*USER_INIT_HANDLE(component))(STATE_T(component) *)

Declare pointer to user-defined component initialising function

Definition at line 97 of file state_utils.h.

#define DEFINE_FINITOR ( component )

Value:

DECL_FINITOR(component) {\
        component_finitor(\
                IS_STATIC(component),\
                (void **)(char *)&HANDLE(component),\
                (void **)(char *)&PUBLIC_HANDLE(component),\
                USER_INIT_HANDLE(component));\
}

Define the generated component finalisation function FINITOR(component)

Definition at line 200 of file state_utils.h.

#define DEFINE_INITOR ( component )

Value:

DECL_INITOR(component) {\
        component_initor(\
                IS_STATIC(component),\
                IS_ZERO_INITABLE(component),\
                (void **)(char *)&HANDLE(component),\
                (void **)(char *)&PUBLIC_HANDLE(component),\
                STATIC_INITIALISER_HANDLE(component),\
                sizeof(STATE_T(component)),\
                USER_INIT_HANDLE(component));\
}

Define the generated component initialisation function INITOR(component)

Definition at line 187 of file state_utils.h.

#define FINITOR ( component ) component##_finitor

Generated name for component finalising function

Definition at line 81 of file state_utils.h.

#define GET_STATE_BY_HANDLE	(	component,
		field
	)	(assert(true),HANDLE(component)->field)

Get the value of a field from the component's global state, accessed through the component's handle.

Definition at line 168 of file state_utils.h.

#define GET_STATIC_STATE	(	component,
		field
	)	(assert(true),STATE(component).field)

Get the value of a field from the component's global static state. Quicker than GET_STATE_BY_HANDLE for a statically implemented component.

Definition at line 179 of file state_utils.h.

#define HANDLE ( component ) component##_h

Generated name for pointer to component global state instance

Definition at line 67 of file state_utils.h.

Referenced by fs_open_dir().

#define HAS_STATIC_INITIALISER ( component ) (INITIALISATION_TYPE_TAG(component) == STATIC_INITABLE)

Has component a static initialiser?

Definition at line 136 of file state_utils.h.

#define HAS_USER_INIT ( component ) (INITIALISATION_TYPE_TAG(component) == (int)USER_INITABLE)

Has component user-defined initialisation and finalisation?

Definition at line 139 of file state_utils.h.

#define IMPORT_FINITOR ( component ) extern DECL_FINITOR(component)

Extern declaration of generated component finalsing function

Definition at line 159 of file state_utils.h.

#define IMPORT_INITOR ( component ) extern DECL_INITOR(component)

Extern declaration of generated component initialising function

Definition at line 157 of file state_utils.h.

#define IMPORT_STATE ( component ) extern PUBLIC_STATE_T(component) * PUBLIC_HANDLE(component)

Extern declaration of handle to component's public state

Definition at line 162 of file state_utils.h.

#define INITIALISATION_TYPE_TAG ( component ) component##_initialisation_type

enum tag name for component's initialisation type

Definition at line 89 of file state_utils.h.

#define INITOR ( component ) component##_initor

Generated name for component initialising function

Definition at line 79 of file state_utils.h.

#define IS_STATIC ( component ) (STORAGE_TYPE_TAG(component) == (int)STATE_STATIC)

Is component state in static storage ?

Definition at line 131 of file state_utils.h.

#define IS_ZERO_INITABLE ( component ) (INITIALISATION_TYPE_TAG(component) == (int)ZERO_INITABLE)

Is component zero-initialisable?

Definition at line 133 of file state_utils.h.

#define PUBLIC_HANDLE ( component ) component##_public_h

Generated name for pointer to component public state instance

Definition at line 69 of file state_utils.h.

#define PUBLIC_STATE ( component ) component##_public_state

Generated name for component public state instance

Definition at line 65 of file state_utils.h.

#define SELECT_DYNAMIC ( component ) enum component##_storage_type { STORAGE_TYPE_TAG(component) = STATE_DYNAMIC }

Select dynamic storage for component state instance

Definition at line 116 of file state_utils.h.

#define SELECT_INITIALISATION_TYPE	(	component,
		init_type
	)	enum component##_init_type { INITIALISATION_TYPE_TAG(component) = init_type }

Select the component's initialisation type

Definition at line 119 of file state_utils.h.

#define SELECT_STATIC ( component ) enum component##_storage_type { STORAGE_TYPE_TAG(component) = STATE_STATIC }

Select static storage for component state instance

Definition at line 113 of file state_utils.h.

#define SELECT_STATIC_INITABLE ( component ) SELECT_INITIALISATION_TYPE(component,STATIC_INITABLE)

Select static initialisation for the component's state instance

Definition at line 125 of file state_utils.h.

#define SELECT_USER_INITABLE ( component ) SELECT_INITIALISATION_TYPE(component,USER_INITABLE)

Select user-defined initialisation for the component's state instance

Definition at line 128 of file state_utils.h.

#define SELECT_ZERO_INITABLE ( component ) SELECT_INITIALISATION_TYPE(component,ZERO_INITABLE)

Select 0-fill initialisation for component state instance

Definition at line 122 of file state_utils.h.

#define SET_STATE_BY_HANDLE	(	component,
		field
	)	(HANDLE(component)->field)

Reference a field in the component's global state, accessed through the the the component's handle.

Definition at line 174 of file state_utils.h.

#define SET_STATIC_STATE	(	component,
		field
	)	(STATE(component).field)

Reference a field in the component's global static state. Quicker than SET_STATE_BY_HANDLE for a statically implemented mdoule

Definition at line 184 of file state_utils.h.

#define STATE ( component ) component##_state

Generated name for component global state instance

Definition at line 63 of file state_utils.h.

#define STATE_ALLOCATOR (malloc)

These items that are imported by state_utils.h to implement the user macros but are inessential to client code.

Define malloc-like function for allocating dynamic state storage

Definition at line 59 of file state_utils.h.

#define STATIC_INITIALISER ( component ) component##_static_initialiser

Generated name for component static initialiser

Definition at line 83 of file state_utils.h.

#define STATIC_INITIALISER_HANDLE ( component ) component##_static_initialiser_h

Generated name for pointer to component static initialiser

Definition at line 85 of file state_utils.h.

#define STORAGE_TYPE_TAG ( component ) component##_storage_type

enum tag name for component storage type, static or dynamic

Definition at line 87 of file state_utils.h.

#define USER_FINIS ( component ) component##_finis

Mandatory name user defined component finaliser

Definition at line 73 of file state_utils.h.

#define USER_FINIS_HANDLE ( component ) component##_finis_h

Mandatory name for pointer to user defined component finaliser

Definition at line 77 of file state_utils.h.

#define USER_INIT ( component ) component##_init

Mandatory name user defined component initialiser

Definition at line 71 of file state_utils.h.

#define USER_INIT_HANDLE ( component ) component##_init_h

Mandatory name for pointer to user defined component initialiser

Definition at line 75 of file state_utils.h.

Function Documentation

void component_finitor	(	bool	is_static,
		void **	state,
		void **	public_state,
		void(*)()	user_finis
	)

Finalise a component's global state

Parameters:

is_static	Is the component's global state in static storage?
state	Pointer to a pointer to the component's global state.
public_state	Pointer to a pointer to the component's public state.
user_finis	`NULL`, otherwise a pointer to a user-supplied function to finalise the component's global state. If `user_init != NULL`, the function asserts that `state != NULL` and then calls `user_init(state)`

Otherwise, state is assumed to address the component's global state in static storage.

Then, if is_static is false, the function again asserts that *state != NULL, then calls free(*state), and sets *public_state = *state = NULL

Definition at line 83 of file state_utils.c.

References release().

Here is the call graph for this function:

void component_initor	(	bool	is_static,
		bool	is_zero_initable,
		void **	state,
		void **	public_state,
		void const *	initialiser,
		size_t	size,
		void(*)()	user_init
	)

Initialise a component's global state

Parameters:

is_static	Is the component's global state in static storage?
is_zero_initable	Is the component's global state zero-initialisable?
state	Pointer to a pointer to the component's global state.
public_state	Pointer to a pointer to the component's public state.
initialiser	`NULL`, otherwise a pointer to a constant initialiser for the component's global state.
size	The size of the component's global state.
user_init	`NULL`, otherwise a pointer to a user-supplied function to initialise the component's global state. If `is_static` is false, the function asserts that `state == NULL` and then assigns to `state` a heap block of `size` bytes.

Otherwise, state is assumed to address the component's global state in static storage.

Then, if is_zero_initable is true, the component's state is 0-filled.

Otherwise, if initialiser != NULL, the size bytes at initialiser are copied to *state.

Otherwise, the function asserts that user_init != NULL, and then calls user_init(*state)

Definition at line 58 of file state_utils.c.

References zallocate().

Here is the call graph for this function:

Files

Functions

Detailed Description

Define Documentation

Function Documentation
