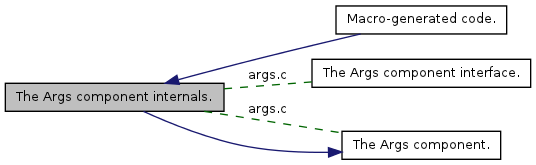

Collaboration diagram for The Args component internals.:

Modules
	Macro-generated code.
Files
file	args.c
Defines
#define	PROGRESS_GAGGED() ((GET_PUBLIC(args,diagnostic_filter) & MSGCLASS_PROGRESS) != 0)
#define	VERSION "4.2.3"
Enumerations
enum	option_codes { OPT_FILE = 'f', OPT_REPLACE = 'r', OPT_BACKUP = 'b', OPT_DEF = 'D', OPT_UNDEF = 'U', OPT_CONFLICT = 'x', OPT_GAG = 'g', OPT_VERBOSE = 'V', OPT_COMPLEMENT = 'c', OPT_DEBUG = 1, OPT_EVALCONSTS = 'E', OPT_DISCARD = 'k', OPT_LINE = 2, OPT_POD = 'P', OPT_RECURSE = 'R', OPT_FILTER = 'F', OPT_KEEPGOING = 'K', OPT_IFS = 'i', OPT_DEFS = 'd', OPT_UNDEFS = 'u', OPT_INCLUDES = 3, OPT_LOCATE = 'L', OPT_ONCE = 'o', OPT_SYSTEM = 's', OPT_LOCAL = 'l', OPT_ACTIVE = 'A', OPT_INACTIVE = 'I', OPT_EVALSYMS = 'e', OPT_IMPLICIT = 'm' }
Functions
static void	make_opts_list (void)
static void	usage (FILE *fp)
static void	usage_error_summary (void)
static void	usage_error (int reason, const char *format,...)
static void	usage_help (void)
static void	version (void)
static void	config_diagnostics (const char *arg)
static void	finalise_diagnostics (void)
static void	error_invalid_opt (cmd_option_t const *cmd, int bad_opt)
static bool	add_files (char const *path)
static void	parse_args_file (const char *argsfile)
static void	parse_command_args (int argc, char *argv[])
Variables
static struct option	long_options []
static char	opts [(sizeof(long_options)/sizeof(struct option))*3]
static struct cmd_option	commands []
static int const	source_cmd_exclusions []
static int const	symbols_cmd_exclusions []
static int const	includes_cmd_exclusions []
static int const	directives_cmd_exclusions []
static int const	defs_cmd_exclusions []
static int const	pragmas_cmd_exclusions []
static int const	errors_cmd_exclusions []
static struct exclusion_list const	cmd_exclusion_lists []

Define Documentation

#define PROGRESS_GAGGED ( ) ((GET_PUBLIC(args,diagnostic_filter) & MSGCLASS_PROGRESS) != 0)

Say whether we are suppressing progress messages

Definition at line 104 of file args.c.

Referenced by parse_command_args().

#define VERSION "4.2.3"

Version of coan. Only used in Windows builds; otherwise defined via autoconf.

Definition at line 539 of file args.c.

Referenced by version().

Enumeration Type Documentation

enum option_codes

Enumeraton of codes for the options of all coan commands

Enumerator:

OPT_FILE	The `--file` option
OPT_REPLACE	The `--replace` option
OPT_BACKUP	The `--backup` option
OPT_DEF	The `--define` option
OPT_UNDEF	The `--undefine` option
OPT_CONFLICT	The `--conflict` option
OPT_GAG	The `--gag` option
OPT_VERBOSE	The `--verbose` option
OPT_COMPLEMENT	The `--complement` option
OPT_DEBUG	The `--debug` option
OPT_EVALCONSTS	The `--constant` option
OPT_DISCARD	The `--discard` option
OPT_LINE	The `--line` option
OPT_POD	The `--pod` option
OPT_RECURSE	The `--recurse` option
OPT_FILTER	The `--filter` option
OPT_KEEPGOING	The `--keepgoing` option
OPT_IFS	The `--ifs` option
OPT_DEFS	The `--defs` option
OPT_UNDEFS	The `--undefs` option
OPT_INCLUDES	The `--includes` option
OPT_LOCATE	The `--locate` option
OPT_ONCE	The `--once` option
OPT_SYSTEM	The `--system` option
OPT_LOCAL	The `--local` option
OPT_ACTIVE	The `--active` option
OPT_INACTIVE	The `--inactive` option
OPT_EVALSYMS	The `--evalsyms` option
OPT_IMPLICIT	The `--implicit` option

Definition at line 109 of file args.c.

Function Documentation

static bool add_files ( char const * path ) [static]

Add files to the input dataset.

Parameters:

path	File or directory to be included in the input dataset.

Returns:: True if path is added to the input dataset, else false.

If path is a file that satisfies any --filter option it is added to the input dataset.

If path is a directory and --recurse is in force then files recursively beneath it that satisfy any --filter option are added to the input dataset.

If path is a directory and --recurse is not in force then the directory is ignored.

Definition at line 665 of file args.c.

References dataset_add(), FS_IS_DIR, FS_IS_FILE, FS_IS_SLINK, FS_OBJ_NONE, fs_obj_type(), GET_PUBLIC, GRIPE_BROKEN_SYMLINK, GRIPE_DIR_IGNORED, GRIPE_NO_FILE, and report().

Referenced by finish_args(), and parse_command_args().

Here is the call graph for this function:

static void config_diagnostics ( const char * arg ) [static]

Configure diagnostic output in response to a --gag or --verbose option.

Parameters:

arg	Either "verbose" or an argument to the `--gag` option

Definition at line 556 of file args.c.

References GET_PUBLIC, GRIPE_DUPLICATE_MASK, GRIPE_USAGE_ERROR, GRIPE_VERBOSE_ONLY, MSGCLASS_ABEND, MSGCLASS_ERROR, MSGCLASS_INFO, MSGCLASS_NONE, MSGCLASS_PROGRESS, MSGCLASS_SUMMARY, MSGCLASS_WARNING, report(), SET_PUBLIC, and usage_error().

Referenced by finalise_diagnostics(), and parse_command_args().

Here is the call graph for this function:

static void error_invalid_opt	(	cmd_option_t const *	cmd,
		int	bad_opt
	)		`[static]`

Raise a usage error when an option is invalid for the active command.

Parameters:

cmd	Pointer to details of the active coan command.
bad_opt	The code of the invalid option.

Definition at line 634 of file args.c.

References get_long_opt_name(), GRIPE_INVALID_ARGS, cmd_option::name, and usage_error().

Referenced by parse_command_args().

Here is the call graph for this function:

static void finalise_diagnostics ( void ) [static]

Configure the final state of diagnostic output filtering.

If no --gag or --verbose option has been seen, default to --gag info --gag summary.

Definition at line 613 of file args.c.

References config_diagnostics(), GET_PUBLIC, and SET_PUBLIC.

Referenced by parse_command_args().

Here is the call graph for this function:

static void make_opts_list ( void ) [static]

Assemble the shortopts argument for getopts_long(). The string is constructed by scanning the long_options array to avoid the need for manually maintaining agreement between that structure and the shortopts string.

This function is called only once.

Definition at line 278 of file args.c.

References option::has_arg, long_options, option::name, no_argument, optional_argument, opts, required_argument, and option::val.

Referenced by parse_command_args().

static void parse_args_file ( const char * argsfile ) [static]

Parse commandline options from a file specified with the --file option.

Parameters:

argsfile Name of the file from which to read options Options are separated by whitespace in the file. The parsed options are stored in an argv array held in the component's private state. This array can then be parsed by parse_args() as if passed to main().

Definition at line 940 of file args.c.

References bail(), GET_PUBLIC, GET_STATE, GRIPE_CANT_READ_INPUT, GRIPE_MULTIPLE_ARGFILES, open_file(), parse_command_args(), ptr_vector_append(), ptr_vector_begin(), ptr_vector_count(), SET_STATE, and zallocate().

Referenced by parse_command_args().

Here is the call graph for this function:

static void parse_command_args	(	int	argc,
		char *	argv[]
	)		`[static]`

Parse the options to the active coan command.

Parameters:

argc	The number of arguments to be parsed.
argv	The array of arguments to be parsed.

Definition at line 706 of file args.c.

References add_files(), cmd_option::cmd_code, CMD_SOURCE, complement(), concatenate(), config_diagnostics(), CONTRADICTION_COMMENT, CONTRADICTION_DELETE, CONTRADICTION_ERROR, dataset_filter_filetypes(), debugging(), DISCARD_BLANK, DISCARD_COMMENT, DISCARD_DROP, error_invalid_opt(), finalise_diagnostics(), GET_PUBLIC, getopt_long(), GRIPE_NO_SYMS, GRIPE_USAGE_ERROR, make_opts_list(), OPT_ACTIVE, OPT_BACKUP, OPT_COMPLEMENT, OPT_CONFLICT, OPT_DEBUG, OPT_DEF, OPT_DEFS, OPT_DISCARD, OPT_EVALCONSTS, OPT_EVALSYMS, OPT_FILE, OPT_FILTER, OPT_GAG, OPT_IFS, OPT_IMPLICIT, OPT_INACTIVE, OPT_INCLUDES, OPT_KEEPGOING, OPT_LINE, OPT_LOCAL, OPT_LOCATE, OPT_ONCE, OPT_POD, OPT_RECURSE, OPT_REPLACE, OPT_SYSTEM, OPT_UNDEF, OPT_UNDEFS, OPT_VERBOSE, optarg, optind, opts, opts_are_compatible(), parse_args_file(), PROGRESS_BUILDING_TREE, PROGRESS_GAGGED, PROGRESS_GOT_OPTIONS, ptr_set_count(), report(), SET_PUBLIC, SET_STATE, symbol_evaluate_status(), and usage_error().

Referenced by parse_args(), and parse_args_file().

Here is the call graph for this function:

static void usage ( FILE * fp ) [static]

Write brief command usage information to a file

Parameters:

fp	Stream to which the info will be written.

Definition at line 306 of file args.c.

References GET_PUBLIC.

Referenced by usage_error_summary(), and usage_help().

static void usage_error	(	int	reason,
		const char *	format,
			...
	)		`[static]`

Write a usage error diagnostic on stderr followed by a usage summary, then terminate the program.

Parameters:

reason	Reason code the for usage error
format	Format for composing error disgnostic with subsequent args.

If format is NULL then the diagnostic is assumed to be "Invalid usage" and the reason is defaulted to GRIPE_USAGE_ERROR

Definition at line 508 of file args.c.

References GRIPE_USAGE_ERROR, usage_error_summary(), and vbail().

Referenced by config_diagnostics(), error_invalid_opt(), finish_args(), parse_args(), and parse_command_args().

Here is the call graph for this function:

static void usage_error_summary ( void ) [static]

Wrapper for usage(stderr) call, used for atexit() registration

Definition at line 493 of file args.c.

References usage().

Referenced by usage_error().

Here is the call graph for this function:

static void usage_help ( void ) [static]

Write brief command usage information to stdout for the --help option, then terminate the program wihtout error.

Definition at line 526 of file args.c.

References MSGCLASS_NONE, and usage().

Referenced by parse_args().

Here is the call graph for this function:

static void version ( void ) [static]

Write version information about the program on stdout

Definition at line 544 of file args.c.

References GET_PUBLIC, MSGCLASS_NONE, OS_TYPE, and VERSION.

Referenced by parse_args().

Variable Documentation

struct exclusion_list const cmd_exclusion_lists[] [static]

Initial value:

 {

    {   0, NULL },

    {   CMD_HELP, NULL },

    {   CMD_VERSION, NULL },

    {   CMD_SOURCE, source_cmd_exclusions},

    {   CMD_SYMBOLS, symbols_cmd_exclusions },

    {   CMD_INCLUDES, includes_cmd_exclusions },

    {   CMD_DEFS, defs_cmd_exclusions },

    {   CMD_PRAGMAS, pragmas_cmd_exclusions },

    {   CMD_ERRORS, errors_cmd_exclusions },

    {   CMD_DIRECTIVES, directives_cmd_exclusions },
    { 0, NULL }
}

Array of exclusion list for the coan commands, indexed by command code.

Definition at line 246 of file args.c.

struct cmd_option commands[] [static]

Initial value:

 {
    { "help", CMD_HELP, CMD_HELP_MASK },
    { "-h", CMD_HELP, CMD_HELP_MASK },
    { "--help", CMD_HELP, CMD_HELP_MASK },
    { "version", CMD_VERSION, CMD_VERSION_MASK },
    { "-v", CMD_VERSION, CMD_VERSION_MASK },
    { "--version", CMD_VERSION, CMD_VERSION_MASK },
    { "source", CMD_SOURCE, CMD_SOURCE_MASK },
    { "symbols", CMD_SYMBOLS, CMD_SYMBOLS_MASK },
    { "includes", CMD_INCLUDES, CMD_INCLUDES_MASK },
    { "defs", CMD_DEFS, CMD_DEFS_MASK },
    { "pragmas", CMD_PRAGMAS, CMD_PRAGMAS_MASK },
    { "errors", CMD_ERRORS, CMD_ERRORS_MASK },
    { "directives", CMD_DIRECTIVES, CMD_DIRECTIVES_MASK },
    { 0, 0 }
}

Array of structures specifying the valid coan commands

Definition at line 184 of file args.c.

Referenced by get_command_option().

int const defs_cmd_exclusions[] [static]

Initial value:

 {
    OPT_REPLACE, OPT_CONFLICT, OPT_DISCARD, OPT_LINE, OPT_BACKUP,
    OPT_SYSTEM, OPT_LOCAL, OPT_IFS, OPT_DEFS, OPT_UNDEFS, OPT_INCLUDES,
    OPT_COMPLEMENT, OPT_EVALSYMS, 0
}

Excluded options for the defs command. .

Definition at line 223 of file args.c.

int const directives_cmd_exclusions[] [static]

Initial value:

 {
    OPT_REPLACE, OPT_CONFLICT, OPT_DISCARD, OPT_LINE, OPT_BACKUP,
    OPT_IFS, OPT_DEFS, OPT_UNDEFS, OPT_INCLUDES, OPT_COMPLEMENT, OPT_EVALSYMS, 0
}

Excluded options for the directives command. .

Definition at line 218 of file args.c.

int const errors_cmd_exclusions[] [static]

Initial value:

 {
    OPT_REPLACE, OPT_CONFLICT, OPT_DISCARD, OPT_LINE, OPT_BACKUP,
    OPT_SYSTEM, OPT_LOCAL, OPT_IFS, OPT_DEFS, OPT_UNDEFS, OPT_INCLUDES,
    OPT_COMPLEMENT, OPT_EVALSYMS, 0
}

Excluded options for the errors command.

Definition at line 235 of file args.c.

int const includes_cmd_exclusions[] [static]

Initial value:

 {
    OPT_REPLACE, OPT_CONFLICT, OPT_DISCARD, OPT_LINE, OPT_BACKUP,
    OPT_IFS, OPT_DEFS, OPT_UNDEFS, OPT_INCLUDES, OPT_COMPLEMENT, OPT_EVALSYMS, 0
}

Excluded options for the includes command. .

Definition at line 213 of file args.c.

struct option long_options[] [static]

Array of structures specifying the valid options for all coan commands

Definition at line 143 of file args.c.

Referenced by make_opts_list().

char opts[(sizeof(long_options)/sizeof(struct option))*3] [static]

Array in which we will assemble the shortopts arguments for getopts_long() We allow 3 bytes per short option, i,e, the short option code possibly followed by up to 2 colons.

Definition at line 181 of file args.c.

Referenced by make_opts_list(), and parse_command_args().

int const pragmas_cmd_exclusions[] [static]

Initial value:

 {
    OPT_REPLACE, OPT_CONFLICT, OPT_DISCARD, OPT_LINE, OPT_BACKUP,
    OPT_SYSTEM, OPT_LOCAL, OPT_IFS, OPT_DEFS, OPT_UNDEFS, OPT_INCLUDES,
    OPT_COMPLEMENT, OPT_EVALSYMS, 0
}

Excluded options for the pragmas command.

Definition at line 229 of file args.c.

int const source_cmd_exclusions[] [static]

Initial value:

 {
    OPT_IFS, OPT_DEFS, OPT_UNDEFS, OPT_INCLUDES, OPT_LOCATE,
    OPT_ONCE, OPT_SYSTEM, OPT_LOCAL, OPT_ACTIVE, OPT_INACTIVE,
    OPT_EVALSYMS, 0
}

Excluded options for the source command. .

Definition at line 202 of file args.c.

int const symbols_cmd_exclusions[] [static]

Initial value:

 {
    OPT_REPLACE, OPT_CONFLICT, OPT_DISCARD, OPT_LINE, OPT_SYSTEM,
    OPT_LOCAL, OPT_BACKUP, OPT_COMPLEMENT, 0
}

Excluded options for the symbols command. .

Definition at line 208 of file args.c.

Modules

Files

Defines

Enumerations

Functions

Variables

Define Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
