The Hash-If-Control component internals

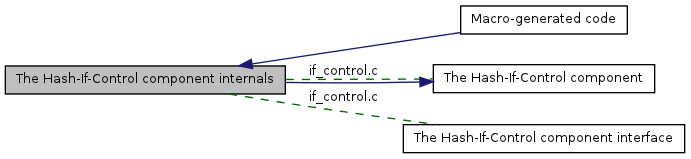

Collaboration diagram for The Hash-If-Control component internals:

Modules
	Macro-generated code
Files
file	if_control.c
Defines
#define	MAXDEPTH   64
Typedefs
typedef void	transition_t (void)
Functions
static void	done_file (void)
static void	nest (void)
static void	set_state (if_state_t is)
static void	Strue (void)
static void	Sfalse (void)
static void	Selse (void)
static void	Pelif (void)
static void	Pelse (void)
static void	Pendif (void)
static void	Dfalse (void)
static void	Delif (void)
static void	Delse (void)
static void	Dendif (void)
static void	Fdrop (void)
static void	Fpass (void)
static void	Ftrue (void)
static void	Ffalse (void)
static void	Mpass (void)
static void	Mtrue (void)
static void	Melif (void)
static void	Melse (void)
Variables
static transition_t *const	transition_table [IF_STATE_COUNT][LT_SENTINEL]

---

Detailed Description

The component is essentially a state machine. The implementation differs only trivially from that of Tony Finch

A state transition function alters the global hash-if processing state in a particular way. The state table is indexed by the current processing state and the type of the current line.

Nesting is handled by keeping a stack of states; some transition functions increase or decrease the depth. In some complicated cases they have to alter the preprocessor directive, as follows:

When we have processed a group that starts off with a known false hash-if/#elif sequence (which has therefore been deleted) followed by an hash-elif that we cannot resolve and therefore must keep, we edit the latter into a #if to keep the nesting correct.

When we find a true hash-elif in a group, the following block will always be kept and the rest of the sequence after the next hash-elif or hash-else will be discarded. We edit the true hash-elif into an hash-else and the following directive to hash-endif since this has the desired behaviour.

"Dodgy" directives are split across multiple lines, the most common example being a multi-line comment hanging off the right of the directive. We can handle them correctly only if there is no change from printing to dropping (or vice versa) caused by that directive. If the directive is the first of a group we have a choice between failing with an error, or passing it through unchanged instead of evaluating it. The latter is not the default to avoid user questions about preprocessor directives being unexpectedly retained.

---

Define Documentation

#define MAXDEPTH   64

Maximum depth of hash-if nesting, c.f. Minimum translation limits from ISO/IEC 9899:1999 5.2.4.1

Definition at line 62 of file if_control.c.

Referenced by nest().

---

Typedef Documentation

typedef void transition_t(void)

Type of if-state transition functions.

Definition at line 67 of file if_control.c.

---

Function Documentation

static void Delif

(

void

)

[static]

State transition

Definition at line 124 of file if_control.c.

References drop(), IF_STATE_FALSE_MIDDLE, and set_state().

Here is the call graph for this function:

static void Delse

(

void

)

[static]

State transition

Definition at line 130 of file if_control.c.

References drop(), IF_STATE_FALSE_ELSE, and set_state().

Here is the call graph for this function:

static void Dendif

(

void

)

[static]

State transition

Definition at line 392 of file if_control.c.

References drop(), and SET_STATE.

Here is the call graph for this function:

static void Dfalse

(

void

)

[static]

State transition

Definition at line 118 of file if_control.c.

References drop(), IF_STATE_FALSE_TRAILER, and set_state().

Referenced by Fdrop().

Here is the call graph for this function:

static void done_file

(

void

)

[static]

End-of-file routine. Trap errors for end of file within comment or within quotation. Reset nesting depth = 0

Definition at line 355 of file if_control.c.

References GET_PUBLIC, GRIPE_EOF_IN_COMMENT, GRIPE_EOF_IN_QUOTE, NO_COMMENT, and parse_error().

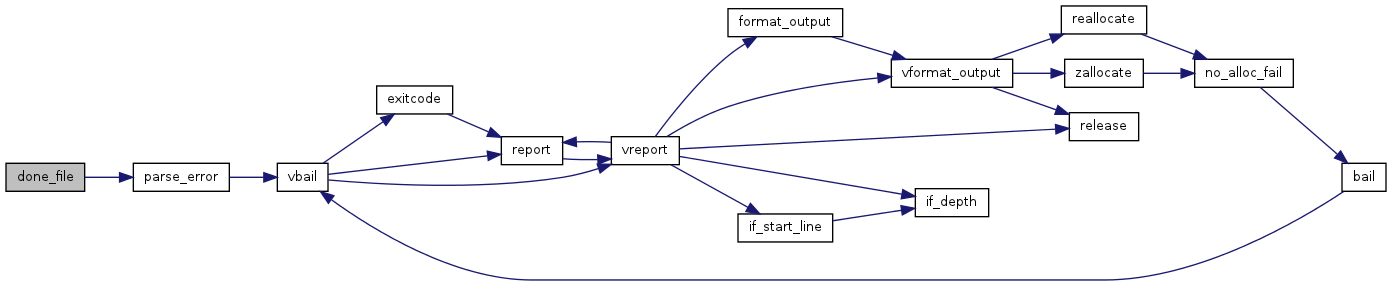

Here is the call graph for this function:

static void Fdrop

(

void

)

[static]

State transition

Definition at line 138 of file if_control.c.

References Dfalse(), and nest().

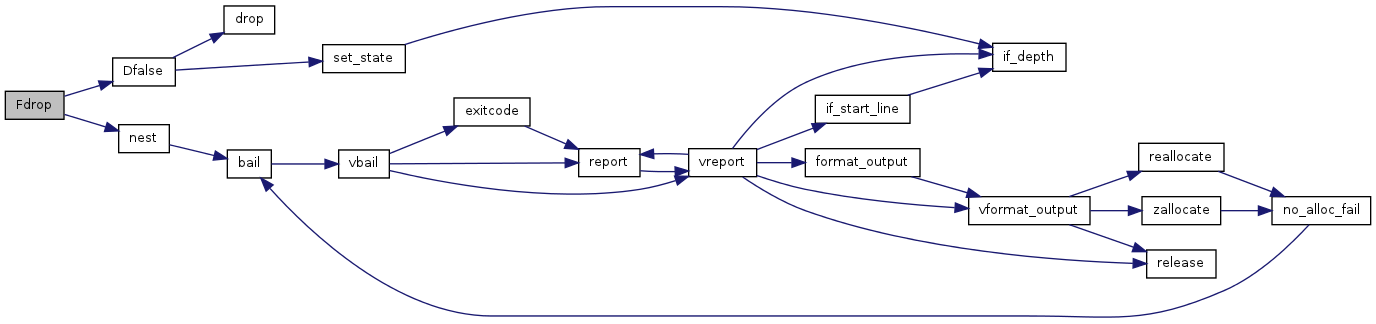

Here is the call graph for this function:

static void Ffalse

(

void

)

[static]

State transition

Definition at line 156 of file if_control.c.

References nest(), and Sfalse().

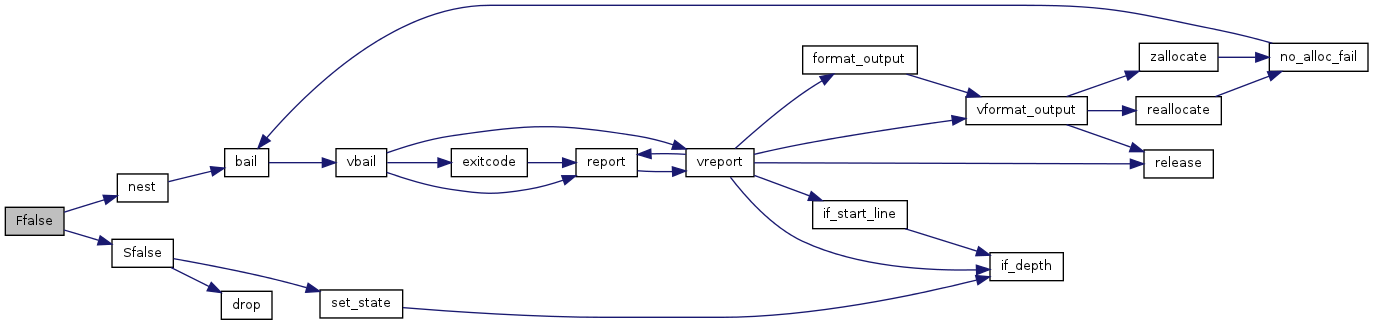

Here is the call graph for this function:

static void Fpass

(

void

)

[static]

State transition

Definition at line 144 of file if_control.c.

References nest(), and Pelif().

Here is the call graph for this function:

static void Ftrue

(

void

)

[static]

State transition

Definition at line 150 of file if_control.c.

References nest(), and Strue().

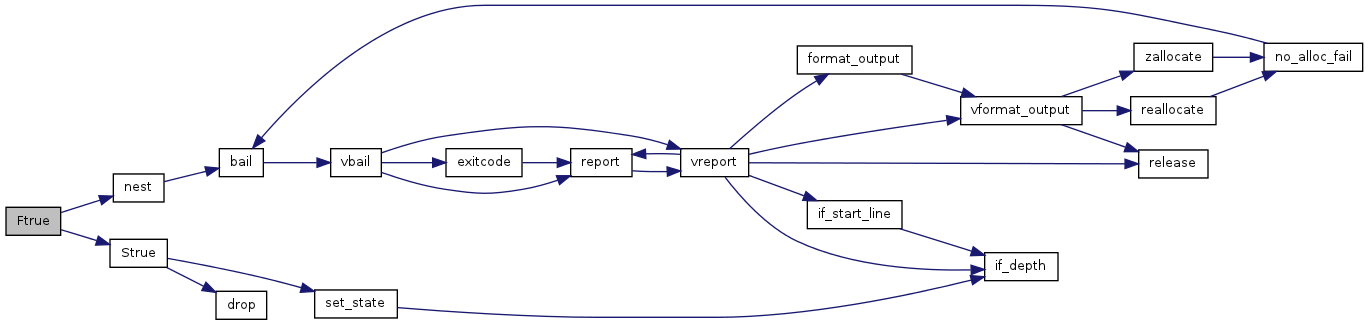

Here is the call graph for this function:

static void Melif

(

void

)

[static]

State transition

Definition at line 174 of file if_control.c.

References IF_STATE_FALSE_TRAILER, keywordedit(), and set_state().

Here is the call graph for this function:

static void Melse

(

void

)

[static]

State transition

Definition at line 180 of file if_control.c.

References IF_STATE_FALSE_ELSE, keywordedit(), and set_state().

Here is the call graph for this function:

static void Mpass

(

void

)

[static]

State transition

Definition at line 162 of file if_control.c.

References GET_PUBLIC, and Pelif().

Here is the call graph for this function:

static void Mtrue

(

void

)

[static]

State transition

Definition at line 168 of file if_control.c.

References IF_STATE_TRUE_MIDDLE, keywordedit(), and set_state().

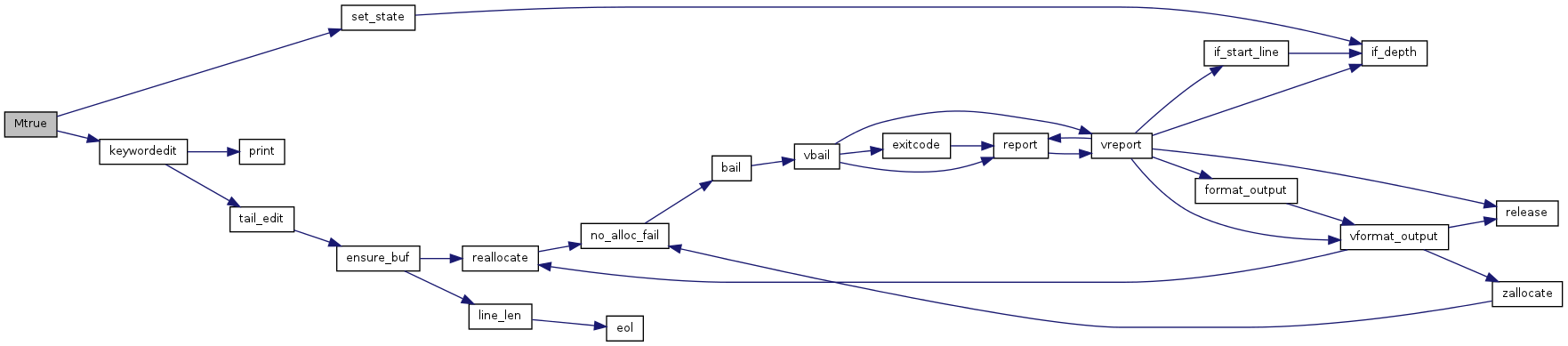

Here is the call graph for this function:

static void nest

(

void

)

[static]

Increment the nesting depth.

Definition at line 370 of file if_control.c.

References bail(), GET_PUBLIC, GET_STATE, GRIPE_TOO_DEEP, MAXDEPTH, and SET_STATE.

Referenced by Fdrop(), Ffalse(), Fpass(), and Ftrue().

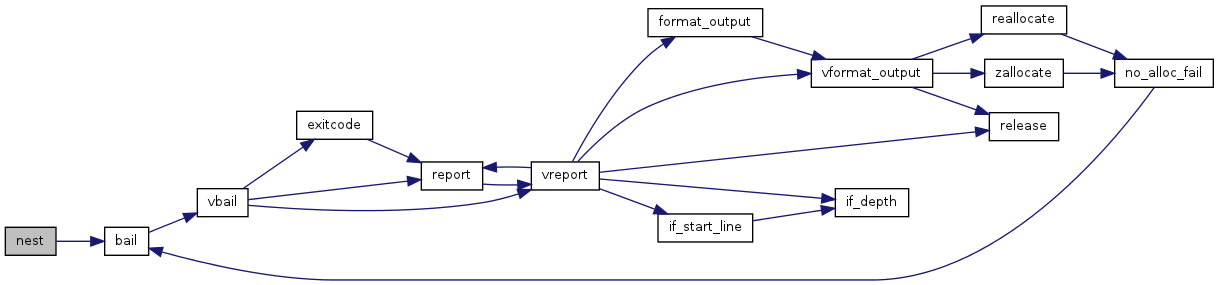

Here is the call graph for this function:

static void Pelif

(

void

)

[static]

State transition

Definition at line 104 of file if_control.c.

References IF_STATE_PASS_MIDDLE, print(), and set_state().

Referenced by Fpass(), and Mpass().

Here is the call graph for this function:

static void Pelse

(

void

)

[static]

State transition

Definition at line 110 of file if_control.c.

References IF_STATE_PASS_ELSE, print(), and set_state().

Here is the call graph for this function:

static void Pendif

(

void

)

[static]

State transition

Definition at line 386 of file if_control.c.

References print(), and SET_STATE.

Here is the call graph for this function:

static void Selse

(

void

)

[static]

State transition

Definition at line 98 of file if_control.c.

References drop(), IF_STATE_TRUE_ELSE, and set_state().

Here is the call graph for this function:

static void set_state

(

if_state_t

is

)

[static]

Assign the if-control state at the current nesting depth.

Parameters:

is	The state to be assigned.

Definition at line 380 of file if_control.c.

References GET_STATE, and if_depth().

Referenced by Delif(), Delse(), Dfalse(), Melif(), Melse(), Mtrue(), Pelif(), Pelse(), Selse(), Sfalse(), and Strue().

Here is the call graph for this function:

static void Sfalse

(

void

)

[static]

State transition

Definition at line 92 of file if_control.c.

References drop(), IF_STATE_FALSE_PREFIX, and set_state().

Referenced by Ffalse().

Here is the call graph for this function:

static void Strue

(

void

)

[static]

State transition

Definition at line 86 of file if_control.c.

References drop(), IF_STATE_TRUE_PREFIX, and set_state().

Referenced by Ftrue().

Here is the call graph for this function:

---

Variable Documentation

transition_t* const transition_table[IF_STATE_COUNT][LT_SENTINEL] [static]

The state transition table

An array of pointers to state transition functions.

Definition at line 191 of file if_control.c.

Referenced by transition().
