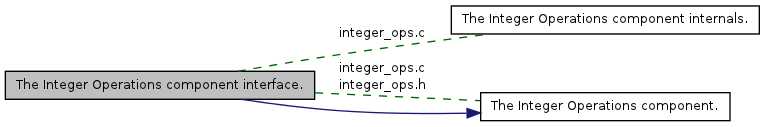

Collaboration diagram for The Integer Operations component interface.:

Data Structures
struct	int_spec
Files
file	integer_ops.c
file	integer_ops.h
Defines
#define	RANK(int_type) ((int_type) >> 16)
#define	SIZEOF(int_type) (((int_type) >> 8) & ~0xff00)
#define	IS_SIGNED(int_type) ((int_type) & 1)
#define	MAKE_SIGNED(int_type) ((int_type) \| 1)
#define	MAKE_UNSIGNED(int_type) ((int_type) & ~1)
#define	INT_UNION_INITOR {0LL}
#define	INT_SPEC_INITOR {INT_UNION_INITOR,INT_UNDEF}
Typedefs
typedef struct int_spec	int_spec_t
typedef int_spec_t(	integer_bin_op_t )(int_spec_t const , int_spec_t const )
Enumerations
enum	int_type { INT_UNDEF = 0, INT_CHAR = (1 << 16) \| (sizeof(char) << 8) \| 1, INT_UCHAR = (1 << 16) \| sizeof(char) << 8, INT_SHORT = (2 << 16) \| (sizeof(short) << 8) \| 1, INT_USHORT = (2 << 16) \| sizeof(short) << 8, INT_INT = (3 << 16) \| (sizeof(int) << 8) \| 1, INT_UINT = (3 << 16) \| sizeof(int) << 8, INT_LONG = (4 << 16) \| (sizeof(long) << 8) \| 1, INT_ULONG = (4 << 16) \| sizeof(long) << 8, INT_LLONG = (5 << 16) \| (sizeof(long long) << 8) \| 1, INT_ULLONG = (5 << 16) \| sizeof(long long) << 8, INT_TOO_BIG = 6 << 16, INT_INSOLUBLE = INT_TOO_BIG }
Functions
int_spec_t	lt (int_spec_t const l, int_spec_t const r)
int_spec_t	gt (int_spec_t const l, int_spec_t const r)
int_spec_t	le (int_spec_t const l, int_spec_t const r)
int_spec_t	ge (int_spec_t const l, int_spec_t const r)
int_spec_t	eq (int_spec_t const l, int_spec_t const r)
int_spec_t	ne (int_spec_t const l, int_spec_t const r)
int_spec_t	bit_and (int_spec_t const l, int_spec_t const r)
int_spec_t	bit_or (int_spec_t const l, int_spec_t const r)
int_spec_t	bit_xor (int_spec_t const l, int_spec_t const r)
int_spec_t	complement (int_spec_t const *int_spec)
int_spec_t	minus (int_spec_t const *int_spec)
int_spec_t	lshift (int_spec_t const l, int_spec_t const r)
int_spec_t	rshift (int_spec_t const l, int_spec_t const r)
int_spec_t	add (int_spec_t const l, int_spec_t const r)
int_spec_t	subtract (int_spec_t const l, int_spec_t const r)
int_spec_t	multiply (int_spec_t const l, int_spec_t const r)
int_spec_t	divide (int_spec_t const l, int_spec_t const r)
int_spec_t	modulus (int_spec_t const l, int_spec_t const r)
int_spec_t	boolean_and (int_spec_t const l, int_spec_t const r)
int_spec_t	boolean_or (int_spec_t const l, int_spec_t const r)
int_spec_t	negate (int_spec_t const *int_spec)

Define Documentation

#define INT_SPEC_INITOR {INT_UNION_INITOR,INT_UNDEF}

Initialiser for type int_spec_t

Definition at line 105 of file integer_ops.h.

Referenced by add(), bit_and(), bit_or(), bit_xor(), complement(), divide(), eval_character_constant(), le(), lshift(), minus(), modulus(), multiply(), rshift(), and subtract().

#define INT_UNION_INITOR {0LL}

Initialiser for union of all integer types

Definition at line 102 of file integer_ops.h.

Referenced by boolean_and(), boolean_or(), eq(), eval_numeral(), lt(), ne(), and negate().

#define IS_SIGNED ( int_type ) ((int_type) & 1)

Say whether an int_type represents a signed type

Definition at line 80 of file integer_ops.h.

Referenced by check_shift_validity(), do_usual_conversions(), eval_numeral(), and sign_extend().

#define MAKE_SIGNED ( int_type ) ((int_type) | 1)

Get the signed variant of an int_type

Definition at line 83 of file integer_ops.h.

#define MAKE_UNSIGNED ( int_type ) ((int_type) & ~1)

Get the unsigned variant of an int_type

Definition at line 86 of file integer_ops.h.

Referenced by do_usual_conversions(), and eval_numeral().

#define RANK ( int_type ) ((int_type) >> 16)

Get the integer conversion rank from an int_type

Definition at line 74 of file integer_ops.h.

Referenced by do_usual_conversions(), and sign_extend().

#define SIZEOF ( int_type ) (((int_type) >> 8) & ~0xff00)

Get the size of an integer type from an int_type

Definition at line 77 of file integer_ops.h.

Referenced by check_shift_validity(), and do_usual_conversions().

Typedef Documentation

typedef struct int_spec int_spec_t

Structure representing the an integer value

typedef int_spec_t( integer_bin_op_t)(int_spec_t const *, int_spec_t const *)

Function type of binary operations on int_spec_t objects

Definition at line 108 of file integer_ops.h.

Enumeration Type Documentation

enum int_type

Encoding of integer types. The upper 3rd byte encodes the integer conversion rank of the integer type. See standard ISO/IEC 9899:1999 6.3.1.1 The upper 2nd byte contains the size of the type. The lowest byte encodes the signedness of the type, 0 = unsigned, 1 = signed.

Enumerator:

INT_UNDEF	No defined type
INT_CHAR	char
INT_UCHAR	unsigned char
INT_SHORT	short int
INT_USHORT	unsigned short int
INT_INT	int
INT_UINT	unsigned int
INT_LONG	long int
INT_ULONG	unsigned long int
INT_LLONG	long long int
INT_ULLONG	unsigned Long long int
INT_TOO_BIG	Integer value too large for its type
INT_INSOLUBLE	Thing was not an int at all

Definition at line 57 of file integer_ops.h.

Function Documentation

int_spec_t add	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

addition op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the addition as an int_spec_t

Definition at line 499 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_add().

Here is the call graph for this function:

int_spec_t bit_and	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

bit_and op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the operation as an int_spec_t

Definition at line 345 of file integer_ops.c.

References do_usual_conversions(), INT_SPEC_INITOR, int_spec::type, and int_spec::val.

Referenced by op_bit_and().

Here is the call graph for this function:

int_spec_t bit_or	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

bit_inclusive_or op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the operation as an int_spec_t

Definition at line 356 of file integer_ops.c.

References do_usual_conversions(), INT_SPEC_INITOR, int_spec::type, and int_spec::val.

Referenced by op_bit_or().

Here is the call graph for this function:

int_spec_t bit_xor	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

bit_exclusive_or op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the operation as an int_spec_t

Definition at line 367 of file integer_ops.c.

References do_usual_conversions(), INT_SPEC_INITOR, int_spec::type, and int_spec::val.

Referenced by op_bit_xor().

Here is the call graph for this function:

int_spec_t boolean_and	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

boolean_and op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the conjunction as an int_spec_t

Definition at line 664 of file integer_ops.c.

References INT_INT, INT_UNION_INITOR, and int_spec::val.

Referenced by op_and().

int_spec_t boolean_or	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

boolean_or op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the conjunction as an int_spec_t

Definition at line 677 of file integer_ops.c.

References INT_INT, INT_UNION_INITOR, and int_spec::val.

int_spec_t complement ( int_spec_t const * int_spec )

complement op on an int_spec_t object.

Parameters:

int_spec The int_spec to be complemented.

Returns:: The result of the operation as an int_spec_t

Definition at line 378 of file integer_ops.c.

References INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by dropping_line(), eval_unary(), flushline_live(), and parse_command_args().

int_spec_t divide	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

divide op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the division as an int_spec_t

Definition at line 595 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_divide().

Here is the call graph for this function:

int_spec_t eq	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

equality op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the comparison as an int_spec_t

Definition at line 328 of file integer_ops.c.

References INT_INT, INT_UNION_INITOR, and int_spec::val.

Referenced by canonical_string_equal(), file_tree_equal(), getopt_long(), op_eq(), ptr_set_equal(), and symbol_equal().

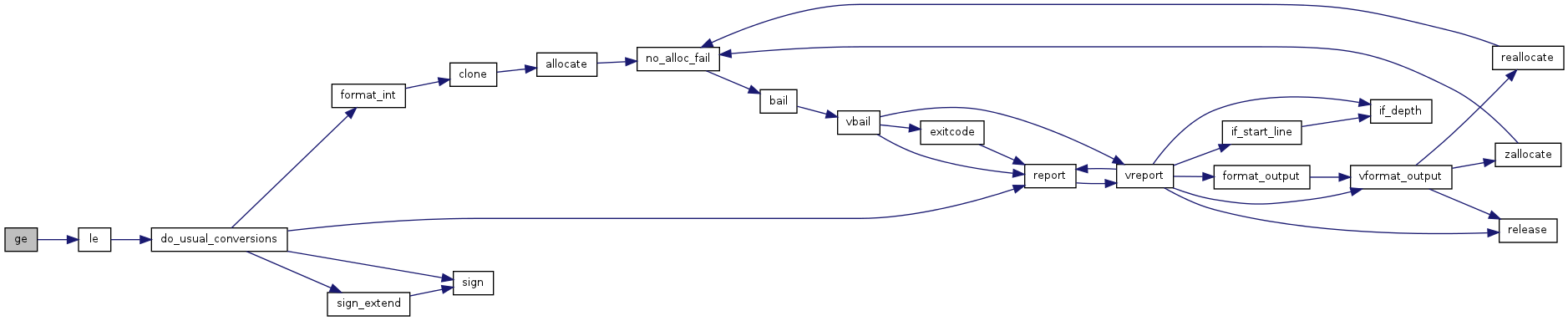

int_spec_t ge	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

greater-than-or-equal op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the comparison as an int_spec_t

Definition at line 322 of file integer_ops.c.

References le().

Referenced by op_ge().

Here is the call graph for this function:

int_spec_t gt	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

greater-than op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the comparison as an int_spec_t

Definition at line 284 of file integer_ops.c.

References lt().

Referenced by op_gt().

Here is the call graph for this function:

int_spec_t le	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

less-than-or-equal op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the comparison as an int_spec_t

Definition at line 290 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by ge(), and op_le().

Here is the call graph for this function:

int_spec_t lshift	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

left_shift op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the shift as an int_spec_t

Definition at line 431 of file integer_ops.c.

References check_shift_validity(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_lshift().

Here is the call graph for this function:

int_spec_t lt	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

less-than op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the comparison as an int_spec_t

Definition at line 252 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_UINT, INT_ULLONG, INT_ULONG, INT_UNION_INITOR, int_spec::type, and int_spec::val.

Referenced by gt(), and op_lt().

Here is the call graph for this function:

int_spec_t minus ( int_spec_t const * int_spec )

unary_minus op on an int_spec_t object.

Parameters:

int_spec The int_spec to be negated.

Returns:: The result of the operation as an int_spec_t

Definition at line 401 of file integer_ops.c.

References INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by eval_unary().

int_spec_t modulus	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

modulus op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the mod op as an int_spec_t

Definition at line 627 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_mod().

Here is the call graph for this function:

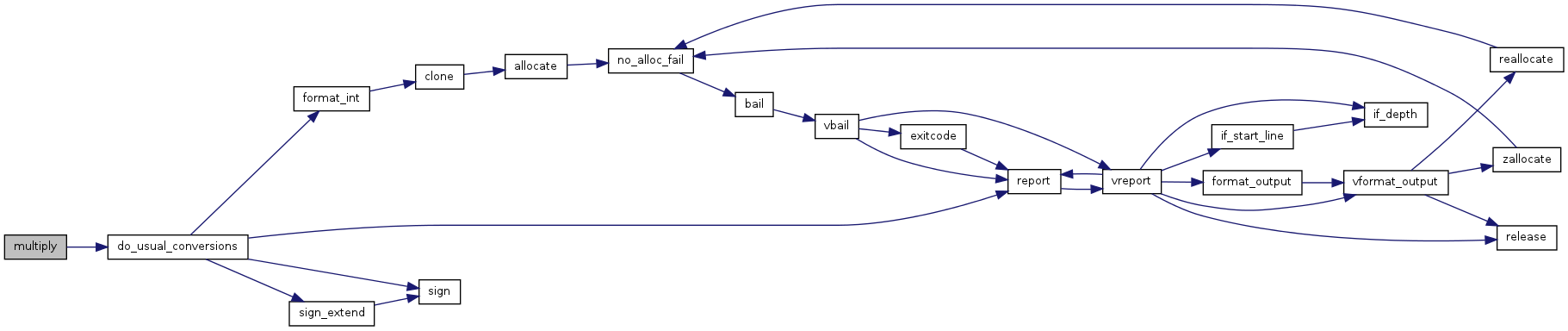

int_spec_t multiply	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

multiply op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the multiplication as an int_spec_t

Definition at line 563 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_mult().

Here is the call graph for this function:

int_spec_t ne	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

inequality op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the comparison as an int_spec_t

Definition at line 336 of file integer_ops.c.

References INT_INT, INT_UNION_INITOR, and int_spec::val.

Referenced by op_ne().

int_spec_t negate ( int_spec_t const * int_spec )

boolean_negation op on an int_spec_t object.

Parameters:

int_spec The int_spec to be negated.

Returns:: The result of the negation as an int_spec_t

Definition at line 690 of file integer_ops.c.

References INT_INT, INT_UNION_INITOR, and int_spec::val.

Referenced by eval_unary().

int_spec_t rshift	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

right_shift op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the shift as an int_spec_t

Definition at line 465 of file integer_ops.c.

References check_shift_validity(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_rshift().

Here is the call graph for this function:

int_spec_t subtract	(	int_spec_t const *	l,
		int_spec_t const *	r
	)

subtraction op on two int_spec_t objects.

Parameters:

l	The left hand operand
r	The right hand operand.

Returns:: The result of the subtraction as an int_spec_t

Definition at line 531 of file integer_ops.c.

References do_usual_conversions(), INT_INT, INT_LLONG, INT_LONG, INT_SPEC_INITOR, INT_UINT, INT_ULLONG, INT_ULONG, int_spec::type, and int_spec::val.

Referenced by op_subtract().

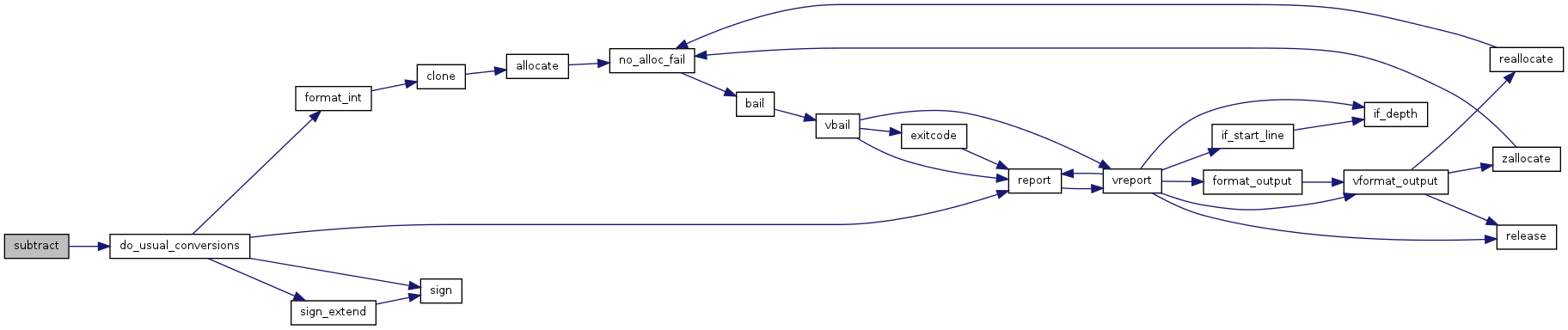

Here is the call graph for this function:

Data Structures

Files

Defines

Typedefs

Enumerations

Functions

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
